Description

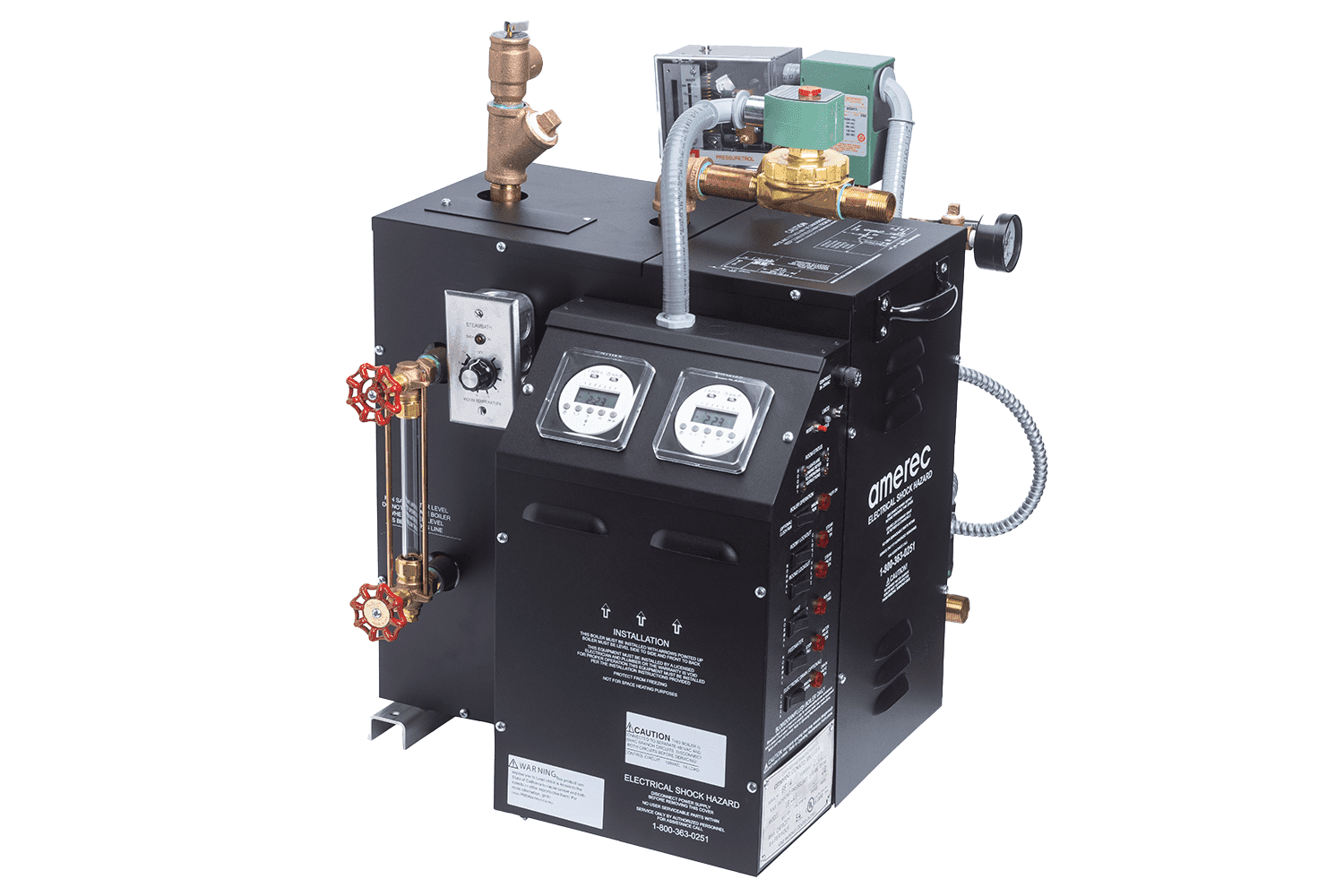

AI-series boiler illustration with optional controls and drain equipment. See model specifications and separately required accessories.
Commercial steam boiler for frequent-use facilities, with accessible service components and diagnostic indicators.
Thermostatic control kit is required and selected separately. One steam head per 12 kW is recommended; one-room kits include two heads, so 30 kW and larger configurations need additional heads.
Optional CoolFlush system, timing controls, fragrance pump and water filtration are separately listed.
Room capacity and electrical installation require project-specific assessment; use the exact voltage/phase manual.
Prices exclude VAT.
Installation is quoted separately. Contact us via WhatsApp, email or the enquiry form for an installation quote.
Specifications
| Power (kW) | 42 |
|---|---|
| Maximum room volume | 59.47 m³ (2100 ft³) |
| Steam output | 57.61 kg/h (127 lb/h) |
| Phase | 3 |
| Dimensions / Width | 711.2 mm (28 in) |
| Dimensions / Height | 508 mm (20 in) |
| Dimensions / Length | 622.3 mm (24.5 in) |
| Steam Outlet | 3/4 inch NPT |
| Construction | Powder-coated steel cabinet, brass fittings, stainless-steel feet |
| Safety | Manual-reset low-water cut-off; Water-level sight glass; Three-level water sensing; Over-temperature shutdown |
| Control Kit Required | IT1 / IT1-M for one room; compatible IT2 / IT2-M for two rooms |
| Recommended steam-head quantity | 4 |
| Connections / Water Inlet | 1/2 inch NPT |
| Connections / Steam Outlet | 3/4 inch NPT |
| Connections / Drain Outlet | 3/4 inch NPT |
| Connections / Safety Relief | 3/4 inch NPT |
| Connections / Descaling Port | 3/4 inch NPT |
| Service clearance / Front | 457.2 mm (18 in) |
| Service clearance / Electrical Side | 457.2 mm (18 in) |
| Service clearance / Plumbing Side | 203.2 mm (8 in) |
| Service clearance / Above Switches And Valves | 152.4 mm (6 in) |
| Installation | Indoors, level, frost-protected, with access for electrical and plumbing service |
Choose your configuration
Supply voltage (V): 208 · Phase: 3
Product code: 9006-423
| Supply voltage (V) | 208 |
|---|---|
| Current (A) | 118 |
| Control Circuit | 120 V; 480 V boilers require separate control service |
Supply voltage (V): 240 · Phase: 3
Product code: 9006-424
| Supply voltage (V) | 240 |
|---|---|
| Current (A) | 102 |
| Control Circuit | 120 V; 480 V boilers require separate control service |
Supply voltage (V): 415 · Phase: 3
Product code: 9006-425
| Supply voltage (V) | 415 |
|---|---|
| Current (A) | 62 |
| Export frequency (Hz) | 50/60 |
| Control Circuit | 240 V for 415 V export models |
Supply voltage (V): 480 · Phase: 3
Product code: 9006-426
| Supply voltage (V) | 480 |
|---|---|
| Current (A) | 51 |
| Control Circuit | 120 V; 480 V boilers require separate control service |
Availability
10 business days.
