Description

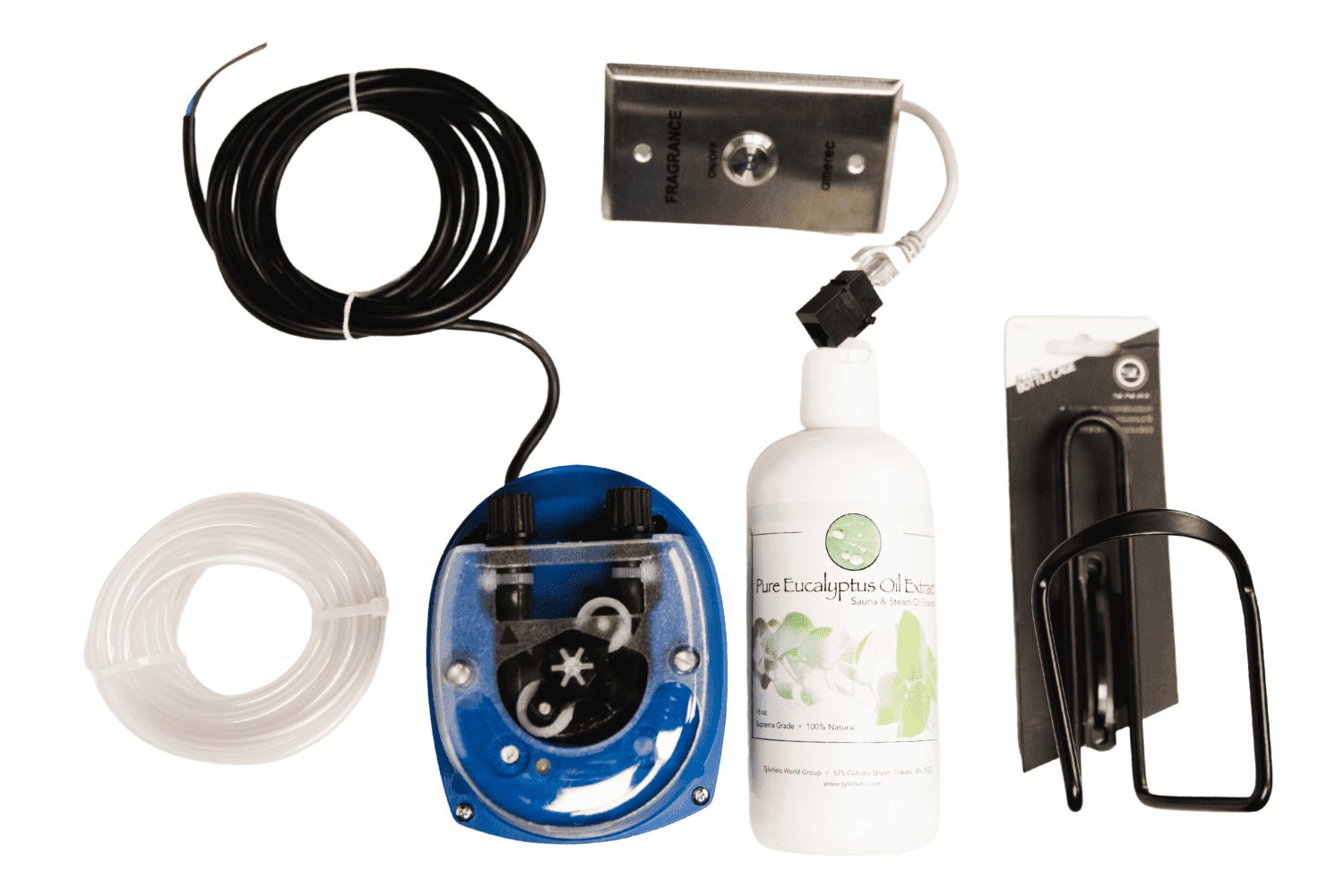

A220FP fragrance-injector pump components; see specifications for complete kit contents.
Adds fragrance to a steam session using a dedicated injection pump and bottle holder.
Mount the controller and on/off switch outside the steam room. A thermal switch enables injection only while steam flows; use is excluded in acrylic or fibreglass rooms by the manual.
Prices exclude VAT.
Installation is quoted separately. Contact us via WhatsApp, email or the enquiry form for an installation quote.
Specifications
| Compatibility | AK models |
|---|---|
| Delivery | Into copper steam line |
| Included | Pump kit; On/off control; 16 oz eucalyptus oil; Wall-mounted bottle caddy |
| Power adapter | 120 VAC input to 24 VAC output |
| Steam Line | 1/2-inch copper |
| Maximum pump height above bottle | 1.22 m (4 ft) |
| Maximum saddle-valve height above pump | 1.22 m (4 ft) |
| Minimum saddle-valve distance from generator | 0.91 m (3 ft) |
| Switch Mounting | Outside steam room |
| Controller Mounting | Accessible wall outside steam room |
| Pump power cord length | 2.74 m (9 ft) |
| Control cable length | 7.62 m (25 ft) |
| Operating Cycle | Brief injection every two minutes while steaming; shuts off after approximately 15 minutes |
| Unsuitable Room Materials | Acrylic; Fibreglass |
| Included installation components | Fragrance controller; 25-foot modular cable; Two 25-foot four-conductor cables; On/off control; Fragrance pump and tubing; 120-to-24 VAC power adapter; 16 oz eucalyptus oil; Bottle cage; Saddle valve; Thermal switch; Wire nuts and hose clamp |
Availability
10 business days.
