Description

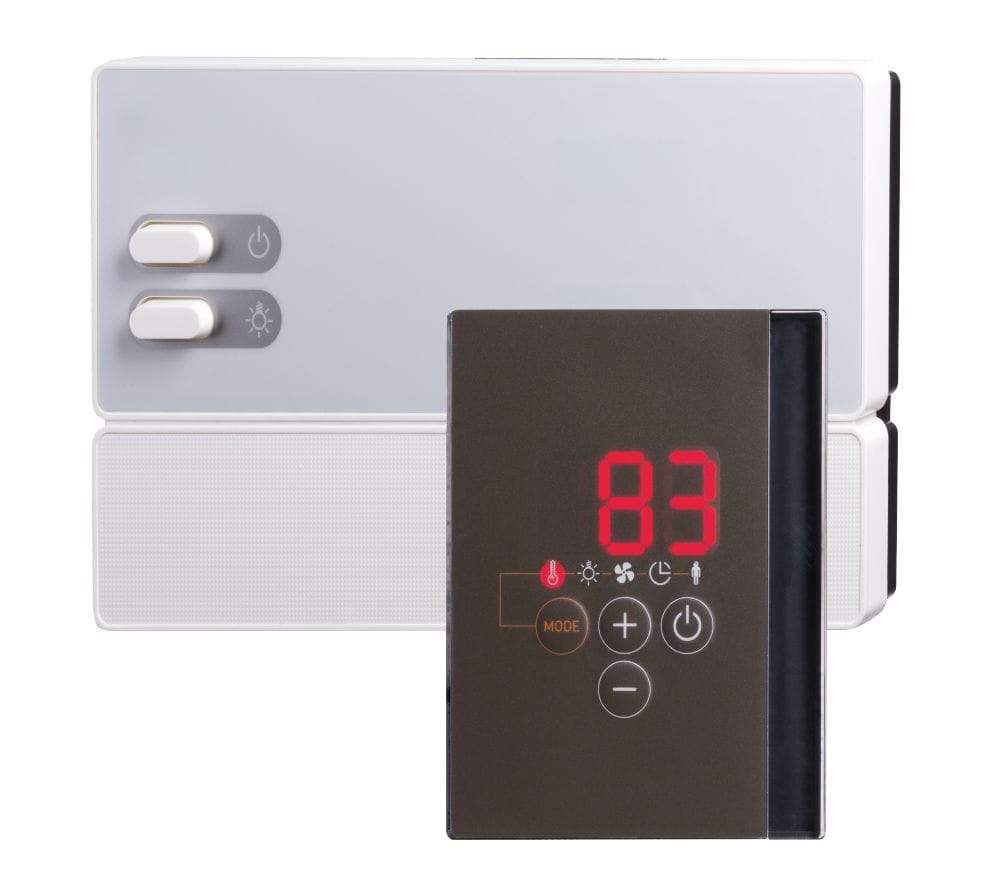

The Harvia PRO-D2 is a professional-grade control unit built for versatility and precision. Its innovative 2-part design with patented technology supports up to 4 control panels, and the power unit can be installed either inside or outside the sauna - making it the ideal choice for any environment, from private homes to commercial spas.
With a maximum heating load of 10.5 kW, expandable with a power extension, the PRO-D2 handles even the most demanding setups. Set your session with a minute-accurate digital timer, preset your ideal temperature, or start remotely - all with energy-efficient electronics and a protection class of IPX4. Light and fan controls are fully switchable and dimmable up to 100 W, while adjustable heating time limits of 6, 12, 18, or 24 hours cater to any commercial need.
Personalize your experience with user profiles, and stay protected with eco mode, safety device connection, and a choice of single or dual sensor system. For even greater connectivity, optional WiFi and an IP65-rated power unit are available.
Key features
- 2-part control unit with patented technology - supports up to 4 control panels
- Installable inside or outside the sauna
- Max. heating load 10.5 kW - expandable with power extension
- Light and fan switchable and dimmable (max. 100 W)
- Adjustable heating time limit for commercial use (6/12/18/24 h)
- Digital minute-accurate timer, temperature preset, and remote start
- Single or dual sensor system, eco-mode, and safety device connection
- User profiles, energy-efficient electronics, protection class IPX4
- Optional WiFi connectivity and IP65-rated power unit
Technical details
| Electrical group options | 400V 3N~ |
|---|---|
| Publish datasheet | false |
| Control type | Controlled by a stand-alone digital control panel |
| User group | Households |
| Customs tariff number EU | 85371098 |
| Electrical Frequency | 50 Hz |
| Product unit (pcs, meters etc.) | PCS |
| Sales unit | pcs |
| Power output | 10.5 kW |
| Requires electrician | true |
| Installation location | Wall |
| Packaging materials | Cardboard |
| Type code | PRO-D2 |
| Main material | Plastic |
| Color | Dark brown |
| Control panel type | Professional D |
| Electrical number (STK) | 8264875 |
| Manual | 5/b/1/2/5b12f3f191233e69533c73b9f19a5874ee20c899_D_06_18_1_041_284_DE_EN_FR_IT_NL_SV_FI.pdf |
| Product group 2 | Control unit with separate control |
| Installation orientation | Vertically |
| Certification document 1 | b/d/1/5/bd15de21d9a02d54eee9177051d97347f0399aaf_CE_PRO_D.PDF |
| Product Family | Professional |
| EAN | 9120053864853 |
| Quantity | 1 |
| Use environment | Interior - dry area |
| IP Class (like: IPX4) | IPX4 |
| Supply cable (400V 3N~) mm2 | 5 x 2.5 mm2 |
