DutyResidential; cold-plunge compatibility review required
Compressor / HP1 HP
Recommended water volume (L)300-2,000 L operating range; 1,000 L reference performance volume
Cooling capacity (kW)Performance reference: 1,000 L from 28°C to 14-16°C in 20 hours at 30°C ambient
Heating capacity (kW)Cooling-only; no heating function
Temperature rangeSetpoint above 4°C
Rated electrical input (W / kW)3.2 A at 220-240V
Voltage / frequency220-240V / 50Hz HC-1000A configuration
PumpNot included; external circulation pump required
Flow rate (L/h)1,500-4,000 L/h
Filtration: type + micron ratingNot included; external filtration required
OzoneNot included
UVNot included
Inlet size / type20 mm or 25 mm hose connection
Outlet size / type20 mm or 25 mm hose connection
Included hoses: quantity + diameter + lengthNot included; specify hoses for the selected 20 mm or 25 mm connections
Included connectors / adapters20 mm and 25 mm hose-connection options; supplied adapter contents vary by package
Tub-side connection requiredPlumbed circulation loop with external pump and filtration
Dimensions (L×W×H cm)52 × 40 × 48 cm
Weight (kg)31.3 kg
RefrigerantR134a, 420-450 g charge
ControlsLocal digital controller
Wi-Fi / appNot included
Indoor / outdoor installation requirementsExternal circulation pump and filtration required; size the complete system for water volume and UAE ambient conditions
Required ventilation / clearanceInstall in a well-ventilated location with unobstructed air intake and exhaust

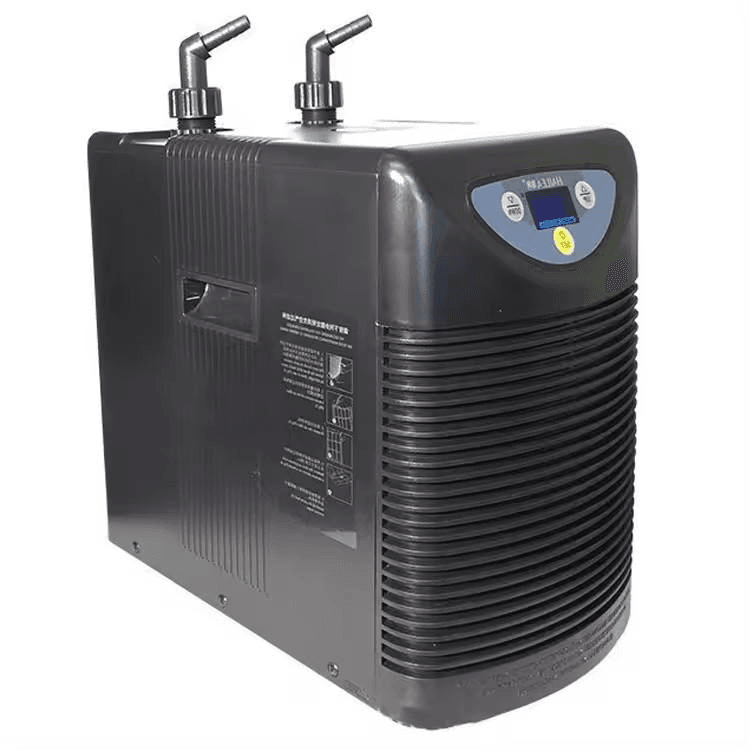

What's included in the boxHC-1000A chiller and operating documentation; pump, filter and site hoses are external system components
Warranty1 year
