Description

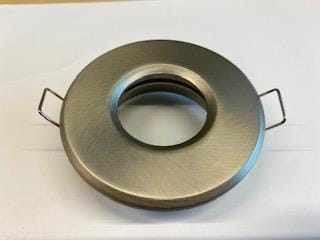

Additional LED fixture housing shown. One RGBW LED, 5 m cable and RJ45 coupler are also included.
Coloured or white steam-room ceiling lighting controlled by the K2 controller or Saunalogic app. A complete system supports up to eight lights.
Fit each fixture in a 2-5/8-inch ceiling opening. Seal the opening with 100% silicone, allow the sealant to cure, and keep the trim-ring O-ring correctly installed. Disconnect the lighting power supply before changing an LED bulb.
One additional light assembly for an existing compatible K2 lighting system. Connect to an available splitter port; maximum eight lights in total.
Prices exclude VAT.
Installation is quoted separately. Contact us via WhatsApp, email or the enquiry form for an installation quote.
Specifications
| Compatibility | AK generator with K2 control |
|---|---|
| LED power (W) | 0.6 |
| Lumens | 90 |
| White-light colour temperature (K) | 3000 |
| Maximum Lights Per Transformer | 8 |
| Mounting | Steam-room ceiling |
| Included | One light fixture (8038-72); One RGBW LED (3160-39); One 5 m Cat5 cable (5304-005); One RJ45 in-line coupler (2310-09) |
| Ceiling Cutout Diameter In | 66.67 mm (2.625 in) |
| Connection | Cat5 cable with RJ45 connectors |
| Maximum Cable Length Ft | 12.19 m (40 ft) |
| Control | K2 control or Saunalogic app through the compatible K2 system |
Availability
10 business days.
